atproto Latency Fabric#

atproto Latency Fabric is a drafts store and scheduler for atproto records. It acts as a transparent proxy that intercepts atproto write calls, stores them as drafts, and publishes them to the user's PDS at the scheduled time.

Use it to add scheduled posting, drafts, or queued writes to any atproto client app.

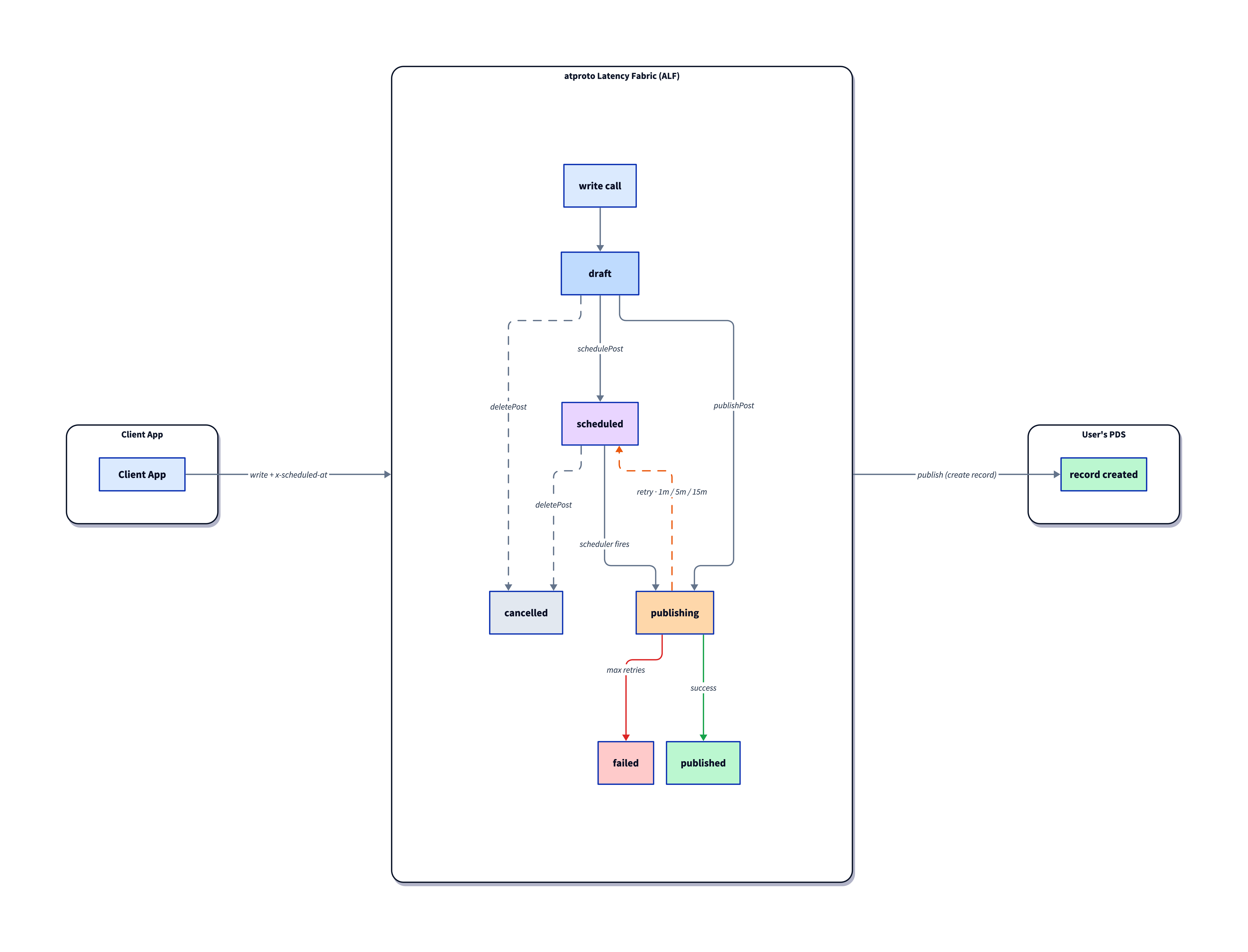

How it works#

1. Your client app points atproto write calls at atproto Latency Fabric instead of directly at the PDS
2. The record is stored as a draft, with an optional publish time via the x-scheduled-at header
3. The scheduler wakes up when the publish time arrives and writes the record to the user's PDS
4. Images are stored at upload time and re-uploaded to the PDS when the post goes out

Demo#

Try the live demo at alf.fly.dev (limited to 3 active drafts per user).

The demo/ directory contains a standalone web app that walks through the full ALF integration: OAuth sign-in, authorizing ALF, scheduling posts with images, and managing drafts. See docs/demo.md for setup and run instructions. ALF must be running locally before you start the demo.

Quick start#

Prerequisites#

Generate an encryption key for storing tokens at rest:

node -e "console.log(require('crypto').randomBytes(32).toString('hex'))"

With Docker Compose#

git clone https://github.com/wearenewpublic/alf.git
-or-
git clone https://tangled.sh/newpublic.org/alf

cd alf

echo "ENCRYPTION_KEY=your-64-char-hex-key-here" > .env

docker compose up -d

curl http://localhost:1986/health
# {"status":"ok","service":"alf"}

Local development#

npm install
cp .env.example .env
# Edit .env: set ENCRYPTION_KEY

npm run dev

Configuration#

All configuration is via environment variables:

Authentication#

atproto Latency Fabric uses atproto OAuth with DPoP. The user authorizes once and a refresh token is stored (encrypted at rest) to use at publish time.

Flow:

1. Redirect the user to GET /oauth/authorize?handle=alice.bsky.social
2. The user approves on their PDS
3. The service exchanges the code for a refresh token and stores it encrypted

Check status:

GET /oauth/status
Authorization: Bearer <user-access-token>

→ { "authorized": true, "authType": "oauth" }

SERVICE_URL must be an HTTPS URL in production for OAuth client metadata discovery to work.

Client integration#

Creating a scheduled post (Bluesky example)#

Point your write calls at atproto Latency Fabric and include the x-scheduled-at header:

const response = await fetch('https://alf.example.com/xrpc/com.atproto.repo.createRecord', {
  method: 'POST',
  headers: {
    'Authorization': `Bearer ${accessToken}`,
    'Content-Type': 'application/json',
    'x-scheduled-at': '2025-06-01T09:00:00.000Z',
  },
  body: JSON.stringify({
    repo: userDid,
    collection: 'app.bsky.feed.post',
    record: {
      $type: 'app.bsky.feed.post',
      text: 'This will post at 9am on June 1st',
      createdAt: new Date().toISOString(),
    },
  }),
});

const { uri, cid } = await response.json();
// uri = "at://did:plc:alice/app.bsky.feed.post/3kw9mts3abc"

Omitting x-scheduled-at creates an unscheduled draft (status draft).

Uploading images#

Upload blobs before creating the record. Raw bytes are stored and re-uploaded to the PDS at publish time.

// 1. Upload the image
const blobResponse = await fetch('https://alf.example.com/blob', {
  method: 'POST',
  headers: {
    'Authorization': `Bearer ${accessToken}`,
    'Content-Type': 'image/jpeg',
  },
  body: imageBytes,
});

const { cid, mimeType, size } = await blobResponse.json();
// cid = "bafkreihdwdcefgh..."

// 2. Reference the blob in the record using atproto blob ref format
const post = {
  $type: 'app.bsky.feed.post',
  text: 'Check out this photo',
  embed: {
    $type: 'app.bsky.embed.images',
    images: [{
      image: { $type: 'blob', ref: { $link: cid }, mimeType, size },
      alt: 'A photo',
    }],
  },
  createdAt: new Date().toISOString(),
};

// 3. Create the scheduled record as normal
await fetch('https://alf.example.com/xrpc/com.atproto.repo.createRecord', {
  method: 'POST',
  headers: {
    'Authorization': `Bearer ${accessToken}`,
    'Content-Type': 'application/json',
    'x-scheduled-at': '2025-06-01T09:00:00.000Z',
  },
  body: JSON.stringify({ repo: userDid, collection: 'app.bsky.feed.post', record: post }),
});

Webhook triggers#

Add x-trigger: webhook to any write call and ALF returns a one-time secret URL. POST to it later to publish the draft — no auth required, the URL is the credential.

const response = await fetch('https://alf.example.com/xrpc/com.atproto.repo.createRecord', {
  method: 'POST',
  headers: {
    'Authorization': `Bearer ${accessToken}`,
    'Content-Type': 'application/json',
    'x-trigger': 'webhook',
  },
  body: JSON.stringify({ repo: userDid, collection: 'app.bsky.feed.post', record: post }),
});

const { uri, triggerUrl } = await response.json();
// triggerUrl = "https://alf.example.com/triggers/some-one-time-key"

// Later, from anywhere, publish the draft:
await fetch(triggerUrl, { method: 'POST' });

Calling the trigger URL a second time returns a 409 TriggerAlreadyFired error.

Recurring schedules#

Create a schedule with a recurrence rule and ALF will automatically queue and publish one draft per occurrence. Static records reuse the same content every time; dynamic schedules fetch a contentUrl at publish time.

const response = await fetch('https://alf.example.com/xrpc/town.roundabout.scheduledPosts.createSchedule', {
  method: 'POST',
  headers: { 'Authorization': `Bearer ${accessToken}`, 'Content-Type': 'application/json' },
  body: JSON.stringify({
    collection: 'app.bsky.feed.post',
    timezone: 'America/New_York',
    recurrenceRule: {
      rule: {
        type: 'weekly',
        daysOfWeek: [1, 3, 5],  // Mon/Wed/Fri
        time: { type: 'wall_time', hour: 9, minute: 0, timezone: 'America/New_York' },
      },
    },
    record: {
      $type: 'app.bsky.feed.post',
      text: 'Good morning!',
      createdAt: new Date().toISOString(),
    },
  }),
});

const { schedule } = await response.json();

Supported rule types: once, daily, weekly, monthly_on_day, monthly_nth_weekday, monthly_last_business_day, yearly_on_month_day, yearly_nth_weekday, quarterly_last_weekday. All rules support startDate, endDate, count, per-occurrence exceptions (cancel, move, override_time, override_payload), and DST-aware wall-clock scheduling via IANA timezone names.

API reference#

See docs/api.md for the full API reference.

Post-publish webhook#

When POST_PUBLISH_WEBHOOK_URL is set, a POST request is sent after each successful publish:

POST https://your-service.example.com/hooks/post-published
Content-Type: application/json

{
  "uri": "at://did:plc:alice/app.bsky.feed.post/3kw9mts3abc",
  "publishedAt": "2025-06-01T09:00:04.123Z"
}

Webhook failures are logged and non-fatal — the draft is still marked published.

Architecture#

Event-driven scheduler#

The scheduler is sleep-based rather than a polling loop. On startup, it calculates the delay until the next scheduled draft and sets a single timeout. When a draft is added or updated, notifyScheduler() recalculates the next wakeup. Idle CPU usage is effectively zero.

Retry logic#

Failed publishes are retried with exponential backoff:

Blob storage#

Uploaded blobs are stored as raw bytes in the database, keyed by their CIDv1 (raw codec, SHA-256). At publish time, blobs are re-uploaded to the user's PDS before writing the record. This ensures images remain available even if the client's original blob upload session has expired.

Security#

• All refresh tokens and DPoP private keys are encrypted at rest with AES-256-GCM using the ENCRYPTION_KEY
• Users can only read and manage their own drafts; ownership is verified by checking the DID in the AT-URI against the authenticated user
• Bearer tokens are verified against the user's PDS via JWKS (OAuth)

Deployment#

See docs/deployment.md for deployment instructions including Docker, Fly.io, Railway, Render, and bare-metal.

PostgreSQL#

DATABASE_TYPE=postgres
DATABASE_URL=postgresql://user:pass@db.example.com:5432/alf

Metrics#

In production, Prometheus metrics are exposed on port 9091 at /metrics. Metrics cover draft operations, blob storage, scheduler wakeups, publish durations, and HTTP request rates.

Development#

npm install
cp .env.example .env
# Set ENCRYPTION_KEY in .env

npm run dev          # Watch mode
npm test             # Run tests
npm run test:coverage  # Tests with coverage report
npm run build        # Compile to dist/
npm run lint         # ESLint

Tests use Jest with 100% coverage thresholds. Test files are in src/__tests__/.

About#

ALF was built as part of Roundabout, by the team at New_ Public. New_ Public is a nonprofit working on healthier digital public spaces. We're open-sourcing ALF as a demonstration of scheduled posting and draft infrastructure that is reusable across the atproto ecosystem.

License#

Apache 2.0
