gok TypeK QMK Firmware Folder#

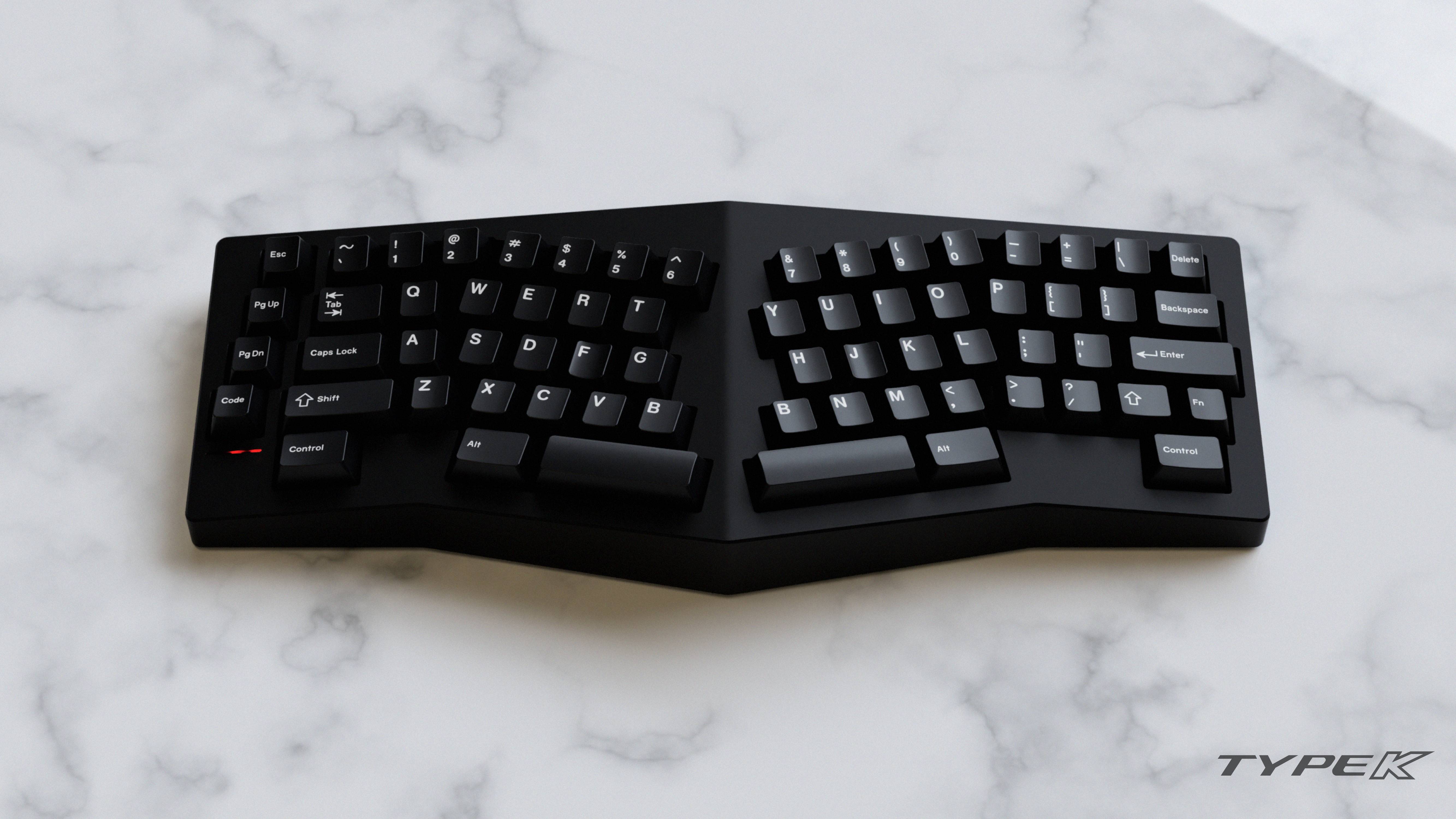

TK

Introduction#

This is the QMK Firmware repository for the Type K, the tented ergo by Gok. The TypeK went through GB on August, 2023. It is supported by a proprietary PCB ecosystem.

How to flash#

Enter bootloader#

The DFU state in the bootloader can be accessed in 3 ways:

  • Bootmagic reset: Hold down the key at (0,0) in the matrix (usually the top left key, escape in the default keymap) and plug in the keyboard;
  • Physical reset button: press the button on the front of the PCB, next to caps lock, for at least five seconds;
  • Keycode in layout: Press the key mapped to RESET; in the default layout, that is top left key ('escape') in layer 1.

How to compile and flash#

After setting up your build environment, you can compile the Iron 165R2 default keymap by using one of the options below.

make typek:default

And use dfu-util in the command line or through a GUI like QMK toolbox to upload the firmware to the PCB. To directly flash the PCB after it is put into a DFU state, use:

make typek:default:flash

See the build environment setup and the make instructions for more information. Brand new to QMK? Start with our Complete Newbs Guide.
