The enthusiast's guide to Memtrace#

Memtrace is a tracing system for profiling the memory usage and allocation patterns of OCaml programs. This guide explains how it works internally, and describes some of the efficiency tricks it uses. (If your goal is learning to use Memtrace rather than learning how it works, this is not the document for you).

Memtrace files consist of a sequence of timestamped GC events: allocations, promotions and collections. Each allocation event carries a backtrace, captured at the time of the allocation. Each promotion or collection event is associated with a specific allocation, allowing analysis of object lifetimes.

A common source of trouble with tracing systems is that the resulting trace files can grow large, making them annoying to transport and slow to process. Traces can also be fragile, requiring the exact original binary (and any loaded shared libraries or plugins) to interpret correctly.

Memtrace was specifically designed to avoid these issues, producing compact self-contained traces. It's instructive to compare the trace sizes with those produced by perf record. Perf is a very different system from memtrace, sampling based on time rather than GC behaviour. However, the resulting trace files are similar, as they also consist of a sequence of timestamped events with associated backtraces.

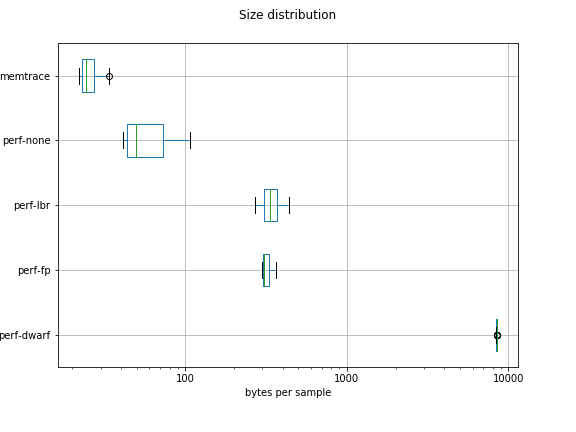

The graph below shows the trace sizes in average bytes / sample, across several runs of a benchmark with different sample rates. The comparison is a little unfair to memtrace: first, memtrace stores more information per sample than perf (e.g. object length, whether an allocation was in the major heap). Second, each sample in memtrace may produce up to three concrete timestamped events (allocation + promotion + collection), and the sizes shown below are the sum of the three, compared to perf's single event per sample.

As we can see, at the same sample rate memtrace traces are more than an order of magnitude smaller than perf's, no matter which of perf's three backtrace mechanisms (lbr, fp or dwarf) is in use. When perf's backtraces are disabled entirely (perf-none above), perf still produces somewhat larger files than memtrace, due to a less efficient binary format.

To analyse these traces, perf requires access to the original 167 MB binary. Memtrace, on the other hand, stores enough debug info inline in the trace to recover full location information without needing the binary. In the benchmarks above, the total size of this debug info ranges from 10 KB to 70 KB (and is not shown in the graph above).

There are two aspects to tracing with Memtrace: sampling allocations, and efficiently encoding the sampled data.

Sampling allocations with Gc.Memprof#

The sampling engine behind memtrace is OCaml's new Gc.Memprof module.

Gc.Memprof accepts a sampling rate and a set of callbacks. The sampling rate is in units of probability: at rate 1e-5, each allocated word has a one in 10^5 chance of being sampled. Since the sampling rate is per word rather than per allocation, larger allocations are more likely to be sampled.

Since each word allocated has an independent chance of being sampled, the number of words until the next sample is distributed according to a geometric distribution. Gc.Memprof draws from this geometric distribution, and takes a sample after that much memory has been allocated.

OCaml uses a bump-pointer allocator on its minor heap: allocations work by subtracting the desired amount of memory from the minor heap pointer, and comparing to the minor heap limit. Rather than introducing an extra branch, Gc.Memprof works by changing the minor heap limit to the position of the next sample, as though the minor heap ended at that point.

Eventually, an allocation will fail when it hits this limit, using OCaml's existing heap-limit check. Gc.Memprof then invokes a callback, and resets the minor heap limit by re-drawing from the geometric distribution. This minimises overhead: the only branch needed is the heap-limit check that's already present.

When an allocation is sampled, it's added to an internal GC data structure so that Gc.Memprof can invoke callbacks when it is promoted to the major heap and/or collected. This way, the entire lifetime of a sampled object is visible.

Comballoc#

OCaml's comballoc optimisation introduces a major complication to this scheme. Multiple consecutive allocations can be combined into a single allocation, with a single heap-limit test. Although these are allocated simultaneously, these allocations may not have the same lifetime. They may not even have the same backtrace, as they can be the result of different levels of inlining.

The debug information used to convert backtraces to readable form was extended to deal with this case, maintaining multiple debug entries for a single allocation instruction when allocations are combined. This means that if an allocation of 2 words is combined with an adjacent allocation of 3 words, about 40% of the samples will be associated with the smaller object and about 60% with the larger.

Collecting backtraces efficiently#

Gc.Memprof collects a backtrace on each sampled allocation, which is something that needs to be efficient.

Collecting a backtrace efficiently at an arbitrary point in an arbitrary program is hard. There are three standard approaches, available as options in perf record:

• --call-graph=dwarf uses the DWARF debugging information

• --call-graph=fp follows a chain of frame pointers

• --call-graph=lbr uses the Last Branch Record hardware support

However, all of these have disadvantages:

• DWARF exists to support debuggers, and so is designed for flexibility rather than speed.

  This flexibility is necessary to handle the hard cases of C stack frames: for instance, a C program can define a variable-length array of ints on the stack, and store its length (in ints, not bytes) in a callee-save register that later gets spilled. So, in order to work out the length of a C stack frame, you may need to walk several other frames to find the register and do some arbitrary arithmetic to compute the length.

  So, the DWARF format allows stack frames to attach an arbitrary program in the DWARF bytecode language to express how to find the next frame. Decoding these is slow and complicated, and perf doesn't try: when sampling, it simply copies a chunk of stack (8KB by default) to the trace, to decode offline. This results in very large traces, which can still be incomplete as OCaml programs often use more than 8KB of stack.

• Frame pointers change the function calling convention to continually maintain a linked list of stack frames so that it's available should a backtrace be taken. This adds a small, but nonzero overhead to every function call and return, and reserves a register. It also requires a special build, as OCaml does not use frame pointers by default.

• LBR is generally the best option, but has a couple of limitations: First, it requires hardware support which is not currently available on UID boxes, and second, where available it is implemented with a fixed-size hardware ring buffer (32 entries on Skylake). Should the ring buffer overflow, entries are dropped, so deep stacks cannot be accurately recorded. (However, there is some very recent experimental support in perf for heuristically stitching together LBR stacks from different samples, which may help).

Happily, Gc.Memprof doesn't have to collect a backtrace at an arbitrary point in an arbitrary program, but only a backtrace at an allocation site in an OCaml program. Because OCaml is a garbage-collected language with precise marking, it already needs to be able to traverse the stack at allocation sites. This traversal needs to be accurate and efficient, because it's done at every GC. It's implemented with a large hashtable, which maps every return address and allocation site to a frame_descr, which contains the length of the stack frame (amongst other information). Traversing the stack using this hashtable is almost as efficient as following frame pointers, but without the runtime overhead.

Compressing traces with memtrace#

The job of the memtrace library is to take the information collected by Gc.Memprof and stream it efficiently to a file. The largest portion of this data by far is the backtraces associated with each allocation.

Backtraces arrive as a sequence of entries (opaque 64-bit integers), which you can think of as return addresses. (They're actually pointers to a static structure generated by the OCaml compiler, which includes the return address and a couple of other bits of information). Each of these entries can be decoded into locations, which contain a source filename, line/column position, and function name. Note that a single entry may yield several locations, due to inlining.

Naively encoding these backtraces would be expensive. OCaml programs often have deep stacks, with dozens or hundreds of entries in a backtrace. Even though the entries themselves are only 8 bytes long, the location information can be much larger. (Remember, it is a design goal of memtrace to include all relevant location information in the trace, rather than relying on the user to hold onto the original binary)

Instead, memtrace uses a series of optimisations to encode backtraces efficiently.

Common prefixes#

The first optimisation is to observe that the backtraces from consecutive samples often have a common prefix. There are two reasons for this:

• Consecutive samples are close together in time. Whatever the program was doing during the last sample, there's a good chance it's still doing it.

• Many programs have some driver structure wrapping the main function, causing there to be the same few entries at the start of nearly every single backtrace.

So, the first thing memtrace does is compare the start of each backtrace to the start of the last. The number of common entries is written to the trace file, and those entries are skipped entirely, saving space.

Location information and caching#

Since the location information is much larger than the 8-byte backtrace entry, it's important to avoid encoding it redundantly. Memtrace keeps a cache of previously-seen backtrace entries, and location information is only decoded and written to the trace file on cache misses. In other words, location information need only be written to a trace file the first time a given location is seen. Since most backtraces hit a relatively small set of locations, this cache has an extremely high hit rate.

There are also some minor optimisations in writing the location information: first, the line and column numbers are written in the same bit-packed format that OCaml uses internally, and second, file and function names use a simple 31-element move-to-front coder, so that file and function names need not be written if they are among the 31 most recently used names.

Cache design#

In order to ensure good performance and to bound memory use, memtrace uses a fixed-size cache rather than letting it grow without bound. This does mean that it's possible for the location information about an entry to be written redundantly: if an entry is evicted from the cache then its locations will have to be written again the next time it's seen. However, this does not happen much in practice.

For speed, the cache is a not a full LRU cache, but rather a two-way skewed-associative cache. In this cache design, each entry is hashed twice, giving two cache buckets. If either contains the entry, it's a hit, otherwise the older of the two is evicted.

Encoding cache indices#

The fixed-size cache has 16384 (i.e. 2^14) entries. In the overwhelmingly common case of a cache hit, memtrace writes the bucket index rather than the entry to the trace file. This means that the 64-bit backtrace entry is instead encoded in 14 bits.

The full 64-bit backtrace entries need only be written during cache misses, along with the cache bucket index into which they're being inserted. This ensures there's enough information in the trace for the trace reader to reconstruct the cache state and know which buckets map to which backtrace entries.

The 14-bit cach bucket index word is written in two bytes, leaving a two-bit tag having four possible states. One of these states is used for cache misses, but the other three are used for a further optimisation: prediction.

Prediction#

It is often possible to predict the next entry in a backtrace: most of the time, the target of a function call is the same as it was last time. So, memtrace maintains an extra field in its cache: in each cache bucket, we also store the cache bucket of the entry that previously followed this one. This is used as a prediction: if correct, we can encode backtraces more compactly.

Specifically, after every cache hit, we follow the chain of predictions until it mispredicts something. The cache is then encoded as one of three cases: 0 correct predictions, 1 correct prediction, or up to 256 correct predictions as specified by a supplemental byte.

This encoding is extremely effective for long chains of non-tail-recursive functions. For instance, suppose we are encoding a backtrace that's using the OCaml stdlib's non-tail-recursive List.map, where the backtrace consists of 200 frames of List.map followed by one frame of some other function doing an allocation.

This backtrace gets encoded in 7 bytes:

• 2 bytes: the first List.map frame and 0 correct predictions. (assuming we get unlucky with the prediction here)

• 2 bytes: the next List.map frame. The prediction for List.map was updated by the previous frame, so now predicts correctly.

• 1 byte: the number 198, indicating 198 correct predictions following the previous frame.

• 2 bytes: the actual function doing the allocation.

(Of course, it's possible that we get lucky on the first frame, and encode this backtrace in 5 bytes)

More tricks?#

There is a lot more that could be done here. The prediction model is very simplistic, always predicting whichever way it went last time. There is much room for improvement:

• we could allow multiple possible predictions, allowing more than one possibility to be encoded efficiently (eventually leading to PPM-style compressors)

• we could use more than one previous frame as context for the next, or do LZ77-style substring matches.

• we could allow weak/strong predictions as used in CPU branch predictors, where a prediction that's worked in the past must be wrong more than once to be replaced.

However, even the relatively simple caching / prediction model currently in use is highly effective: the average encoded size is on the order of 10 bytes for an entire backtrace.

Other optimisations#

In fact, with the optimisations above backtraces became sufficiently short that the fixed-size fields of the trace (timestamps, etc.) started to become a significant fraction of the total file size. So, memtrace currently does a number of packing tricks to keep size down there too:

• Integers that are usually small use a variable-length encoding, meaning most of them fit in one byte.

• Allocation IDs are used in promotion and collection events to specify which block was collected. They have a relative encoding: instead of "collect allocation N", they encode "collect the Nth most recent allocation". This means that N is usually small and profits from the variable-length integer encoding.

• The most common cases (small allocations on the minor heap, with only one sample, and <= 256 backtrace entries) are given special event codes to save space.

• Timestamps are truncated, allowing the timestamp and the event type field to fit in the same 32-bit word. Short timestamps overflow after just over 30 seconds, but the format ensures there is at least one full 64-bit timestamp every 30 seconds (in a CTF packet header), so all timestamps can be decoded unambiguously.

For more#

If you're curious about the exact format, go look at src/memtrace.tsdl in the memtrace sources, which specifies the whole format in CTF's TSDL language.
